3DPTEK-J1600Plus Binder Jet Sand 3D Printer Details

3DPTEK-J1600Plus
High-precision sand 3D printer

surpass
±0.3mm

highest precision

153 L/h

Maximum molding efficiency

400dpi

highest resolution

1600mm

Maximum molding size

Online Inquiry

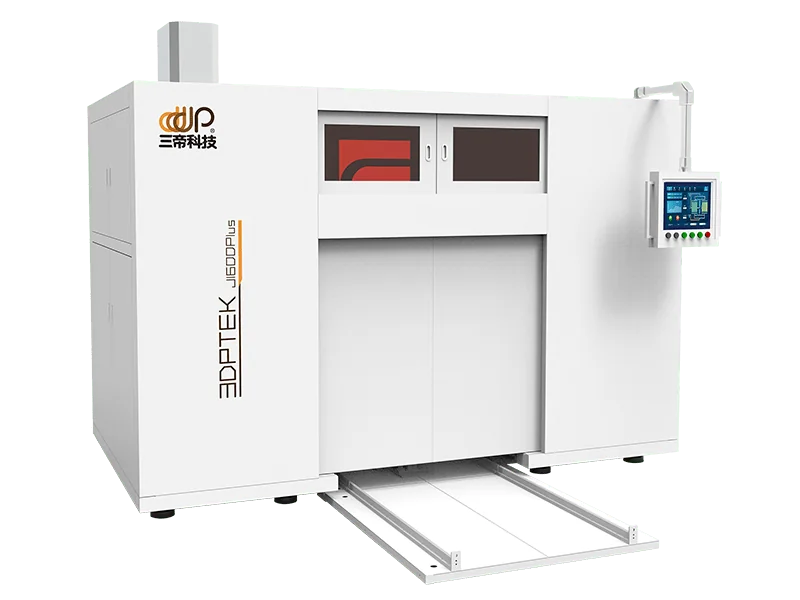

3DPTEK-J1600Plus Device Introduction

The company's self-developed 3DP sand printer 3DPTEK-J1600Plus adopts the latest generation of high-speed vibration powder laying technology (HSVC 9.0 mute), with high-performance molding process and intelligent algorithms technology, fast running speed, easy to operate, with the molding of large sizes, high printing efficiency, high precision and strength of the sand mold than the traditional process, and a wide range of applications.

  • The fastest print speed is up to 15s/layer;
  • Maximum molding accuracy is better than ±0.3mm;
  • Maximum printing efficiency up to 153L/h;

Suitable for large size, small and medium batch sand mold production, suitable for the development and manufacture of prototype parts as well as the production of small and medium batch castings.

Equipment parameters

设备型号
3DPTEK-J1600Plus
设备主体尺寸
4170×5560×3800mm
最大成型尺寸
1600×1000×700mm
设备重量
Approx. 10.0T
喷头分辨率
400dpi
成型厚度
0.1-0.5mm
成型材料
石英砂/陶粒砂等

Sample display

3DP Casting Sand Mold 3D Printing
Casting Sand Mold 3D Printing Case

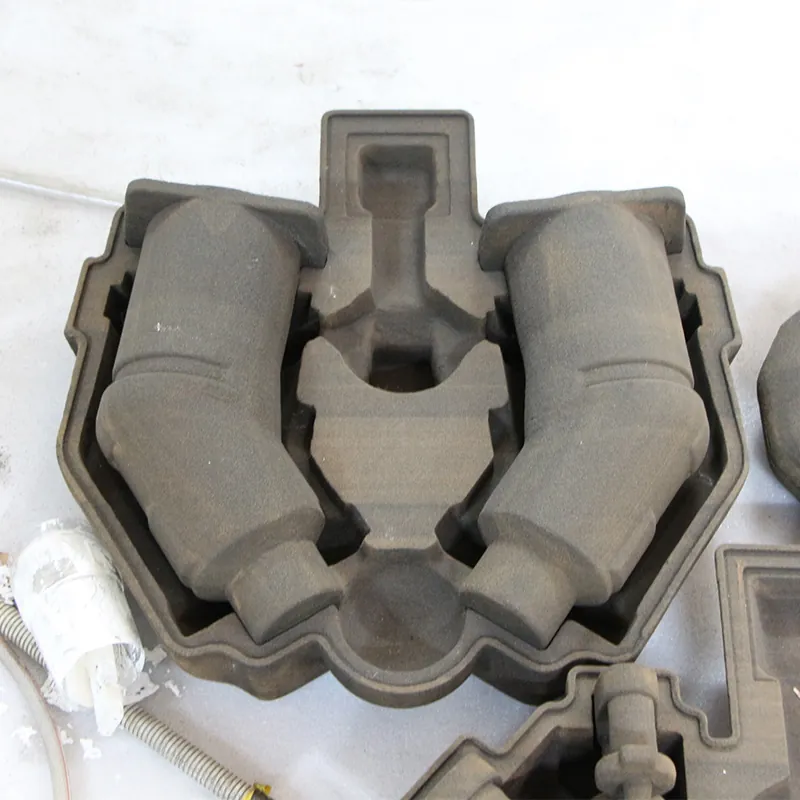

Sand molds printed by the bonded jet process

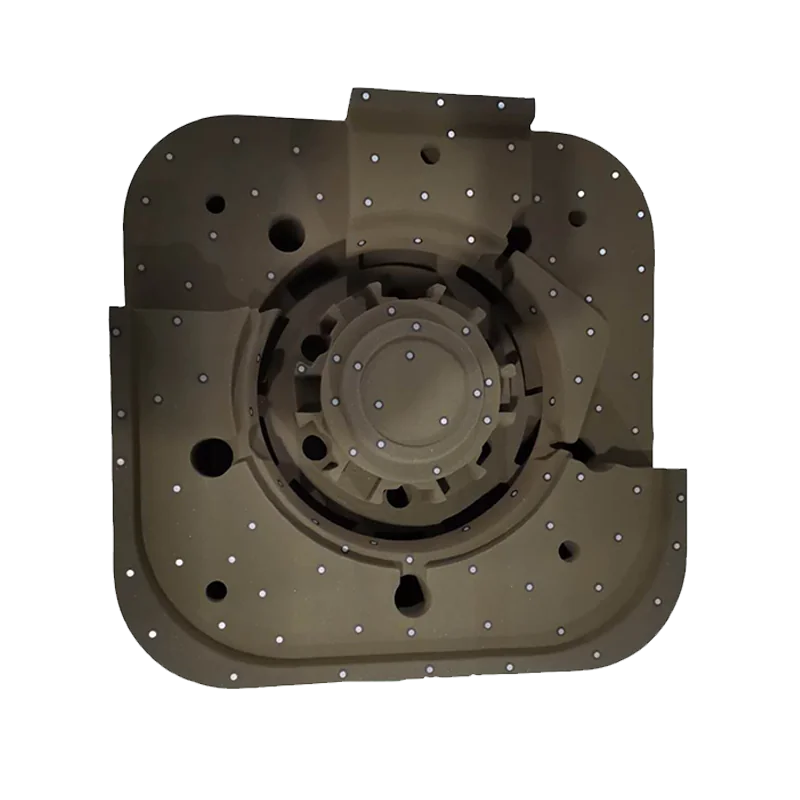

Sand molds for 3D printed casting
