SLS Wax Mold 3D Printer: Principle, Advantages, Application Areas, Prospects

This paper centers on the SLS wax 3D printer, describes in detail its working principle, analyzes the advantages over traditional processes, introduces the wide range of applications in aerospace, automotive manufacturing, art creation, ships and other fields, and looks forward to its future development prospects, aiming to give readers a comprehensive understanding of the important role played by this advanced printing technology in many aspects of modern manufacturing.

The working principle of SLS wax mold 3D printers

The SLS Wax Mold 3D Printer operates on a highly innovative principle. It starts by spreading a specially formulated wax powder material evenly over the printing platform, forming a thin layer of powder. Subsequently, a high-energy laser beam selectively scans and sinter the wax powder in accordance with the predefined 3D model data. Under the high temperature of the laser beam, the scanned wax particles instantly melt and bond to each other, and when cooled down, they solidify to form a layer of wax mold structure with a specific shape. Next, the printing platform is lowered a certain distance, a new layer of wax powder is laid down, the laser continues scanning and sintering, and so on, layer by layer, to finally build a complete wax mold. This layer-by-layer manufacturing method is capable of accurately reproducing complex three-dimensional geometries, and even models with fine internal holes, thin walls, or complex curved surfaces can be excellently printed.

Advantages of SLS Wax Mold 3D Printer

(i) High degree of design freedom

The traditional wax modeling process is often limited by molds and other factors, which makes it difficult to realize some very creative and complex designs. The SLS wax 3D printer completely breaks this constraint, allowing designers to use their imagination to create a variety of unprecedented shapes. Whether it's a piece of jewelry with a delicate internal structure or an industrial component with a unique aerodynamic shape, if it can be designed with modeling software, the SLS Wax Mold 3D Printer can bring it to life, providing unlimited possibilities for product innovation.

(ii) Excellent material properties

The wax powder material used is specially formulated to provide good strength and stability after sintering, while retaining the properties of the wax material itself that make it easy to subsequently process. For example, in the casting process, these wax molds are able to carry out the subsequent processes such as dewaxing smoothly, and can ensure that under the high temperature casting environment, there will be no deformation, cracking and other problems affecting the quality of the final casting, which lays a solid foundation for the production of high-quality metal castings.

(iii) Efficient productivity

Compared to the traditional manual or partially machined production of wax models, the SLS 3D wax model printer is capable of automated and continuous production. Once the model data has been imported, the printer is able to complete the entire wax model printing process autonomously according to the settings. It is also possible to lay out several different small wax models for mass production on a single printing platform at the same time, which greatly reduces the production cycle time, and is especially suitable for time-critical orders or mass production tasks.

The main application areas of SLS wax mold 3D printers

• AerospaceSLS wax mold 3D printing can produce wax molds of complex structures such as aero-engine blades, impellers, etc. These wax molds, through the subsequent investment casting process, can produce high-performance metal parts for use in aircraft engines, fuselage structural parts, etc., which can help to reduce the weight of the aircraft, improve fuel efficiency, and enhance the performance of the flight.

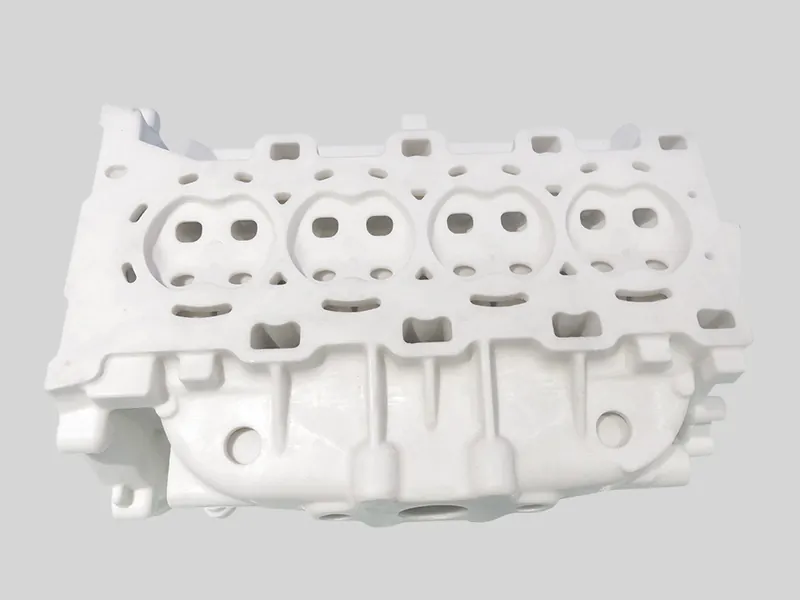

• Automotive ManufacturingSLS wax mold 3D printing is widely used in the R&D and production of automotive parts. For example, automotive engine block, cylinder head, intake pipe, gearbox shell and other complex parts of the wax mold production, through the rapid printing of wax mold and casting, can shorten the new product development cycle and reduce costs, accelerate the speed of automotive product replacement. In addition, it can also be used to manufacture automotive interior parts, personalized customized parts and jigs and fixtures, etc., to improve production efficiency and product quality.
• Ship Pumps and ValvesThe use of SLS wax mold 3D printing technology can greatly save materials for some rare and precious metal parts in ship pump and valve equipment. The whole printing molding to avoid welding connection, can realize small batch rapid core making, save the time of mold opening, simplify the structural design, improve structural performance, reduce costs.
• Energy power areaIn the energy and power industry, SLS 3D printing can be used to create wax molds to produce high-quality castings for large and complex parts, such as blades and hubs for wind turbines. In addition, for the research and development and trial production of new energy power equipment, the technology can quickly produce wax molds of the required components, speeding up the research and development process, improving the efficiency of energy conversion and saving costs.
• Industrial MachinerySLS 3D printing is commonly used to make wax models of complex parts in various industrial machinery and equipment, such as hydraulic components, transmission gears, molds, etc. of engineering machinery. These parts often have complex internal structure and high precision requirements, SLS wax mold 3D printing can meet their production needs, improve production efficiency and product quality, reduce production costs.
• Art Sculpture FieldArtists and sculptors can use SLS wax 3D printing technology to quickly transform digital models into solid wax models that can be used to create beautiful sculptures. The technology enables the rendering of complex shapes and fine textures, providing greater artistic freedom and possibilities, while shortening the creation cycle and increasing the productivity of the work.

Fourth, what are the factors to consider when buying an SLS wax model 3D printer?

When planning the purchase of an SLS wax model 3D printer, you need to make thorough considerations in order to purchase a device that meets your actual needs, and here are some of the factors to focus on:

• (i) Printing accuracy
  Layer thickness setting: The smallest layer thickness that the printer can achieve determines the fineness of the final wax model. A smaller layer thickness can create models with richer details and smoother surfaces. For example, when making wax models of jewelry with fine textures in the jewelry industry, you need the ability to print with high precision and small layer thicknesses, so you should pay attention to the minimum layer thickness indicator that can be achieved by the equipment. Generally speaking, the layer thickness varies between tens of microns and hundreds of microns, so you should choose the right one according to your specific needs.
  Dimensional accuracyThe overall dimensional accuracy of the wax model depends on whether the printed wax model matches the designed model to a high degree or not, as large deviations may lead to problems in the subsequent casting process. Check the nominal dimensional accuracy of the equipment and the actual user feedback on the model dimensional errors to ensure that it meets the requirements of your industry for the dimensional accuracy of wax molds, which are often very high in precision casting.
• (ii) Printing speed
  Molding volume per unit time: Knowing the volume of wax molds a printer can print per hour or per day has a significant impact on productivity. If there is a mass production task, e.g. in the case of mass production of jewelry molds or industrial parts, a higher volume per time means faster order fulfillment, shorter production cycles and lower time costs.
  Speed performance under different model complexity: Some printers print simple structural models at a reasonable speed, but when it comes to complex models with fine internal structures the speed drops drastically. It is necessary to examine the stability of its speed when dealing with models of various complexity, to ensure that in actual production, both simple and complex wax models can be printed at a more reasonable speed.
• (iii) Build size
  Maximum print size: Consider the maximum size of the wax model that the printer can accommodate, taking into account the size of the wax models that you regularly make and the possible future expansion of your business. For example, if you mainly produce small dental molds, you may not have high requirements for large size, but if you are involved in the production of large sculpture molds or wax molds of larger industrial parts, you will need a larger build size, or else you can only print in pieces and then splice them together (which is often encountered in the actual production) and other complex ways to complete the process, thus increasing the process difficulty and cost.
  Effective print area utilization efficiency: Some printers have a large nominal maximum print size, but due to the internal structure and other reasons, the actual flexibility to use the effective print area is limited, which will also affect some special shapes or layouts of the wax mold printing, to carefully understand this aspect of the situation, to ensure that it can make full use of its print space.
• (iv) Wax powder material compatibility
  Supported Wax Powder TypesDifferent wax powder materials have different characteristics, such as melting point, hardness, fluidity, etc., which are suitable for different application scenarios. Make sure the printer can be compatible with the wax powder you plan to use, or the mainstream, high-quality wax powder on the market, like some special industries may need high temperature resistance, high toughness wax powder, the printer should be able to adapt well.
  Material replacement convenienceIf there is a need to change different kinds of wax powder frequently for diversified wax modeling, it is important to know whether the material changing operation is easy and fast, complicated changing process will waste time and reduce the production efficiency, so we should examine whether the design of the material changing system is humanized.
• (v) Equipment stability and reliability
  failure frequency: By checking user reviews, consulting other users who have used the equipment, etc., to understand the frequency of malfunctions in the normal course of use, a printer that frequently breaks down will seriously affect the production schedule, resulting in increased maintenance costs and delays in delivery and other issues.
  Component Durability: The durability of key components inside the printer, such as the laser generator unit and the powder spreading system, is critical. High-quality, durable components ensure stable operation of the device for a long period of time, and reduce the downtime and additional costs associated with replacing parts, so it is important to understand the design life of each component and how it performs in actual use.
• (vi) Software packages
  Slicing Software FeaturesSlicing software is responsible for processing 3D model data into commands that can be recognized and executed by the printer, and it is important that it is powerful. For example, whether it can automatically generate a reasonable support structure (critical for some wax models with overhanging parts), whether it can make fine adjustments to the printing parameters, whether it supports the import of multiple model file formats, etc. A good slicing software can optimize the printing effect and improve the success rate.
  Ease of operation of the softwareThe easy-to-understand software reduces operator learning costs, reduces printing failures due to operational errors, and makes it easy for people of all skill levels to quickly get started with the printer for wax modeling.
• (vii) After-sales service
  Technical support responsiveness: When problems are encountered in the process of use, it is critical to get timely technical support from the manufacturer, and a quick response can solve the problem as soon as possible and resume production. Understand the technical support channels provided by the manufacturer (such as telephone, network customer service, etc.) and the average response time and so on.
  Repair service and spare parts supply: When the equipment fails and needs to be repaired, can the manufacturer arrange for maintenance personnel to visit in a timely manner, and whether there is an adequate supply of original spare parts, to avoid waiting for spare parts and a long time downtime, but also to understand the approximate situation of the maintenance costs, to ensure that the cost of maintenance in the latter part of the acceptable range.
• (viii) Prices and costs
  Purchase price of equipmentThe price difference between different brands and models of SLS wax model 3D printers may be large, and it is necessary to do market research and comparison.
  Long-term operating costs: In addition to the purchase price, but also consider the subsequent use of the process of consumables (wax powder) costs, equipment maintenance costs (repairs, parts replacement, etc.), electricity and other long-term operating costs, a seemingly inexpensive purchase price but consumables and maintenance costs of the high cost of printers, in the long run may not be an affordable choice.

Taking all these factors into consideration, you will be able to choose an SLS wax model 3D printer that meets your needs, is cost-effective, and operates stably and reliably, thus laying a good foundation for wax modeling and the subsequent smooth development of related production operations.

V. Prospects for the development of SLS wax mold 3D printers

With the continuous progress of science and technology, SLS wax modeling 3D printers are developing in the direction of higher precision, faster speed and more diversified materials. In terms of precision, it is expected to achieve sub-micron printing accuracy in the future, which can create more delicate and complex wax structures; in terms of speed, the application of new printing technologies and algorithms will further shorten the printing time and improve the production efficiency; and in the field of materials, researchers are also constantly researching and developing wax materials with special properties, such as high-temperature resistant, high-strength, or biocompatible wax, to expand its application in more emerging fields. its application in more emerging fields.

It can be said that the SLS wax 3D printer has become an indispensable part of the modern manufacturing field, it continues to bring new opportunities and changes to various industries, promoting the process from creative design to the final product to accelerate the process of landing, I believe that in the future, it will blossom more bright light, to help more innovative achievements.

In conclusion, SLS wax 3D printers are profoundly changing the way we manufacture with their unique technology and wide range of applications, so let's wait and see what it creates in the future.
